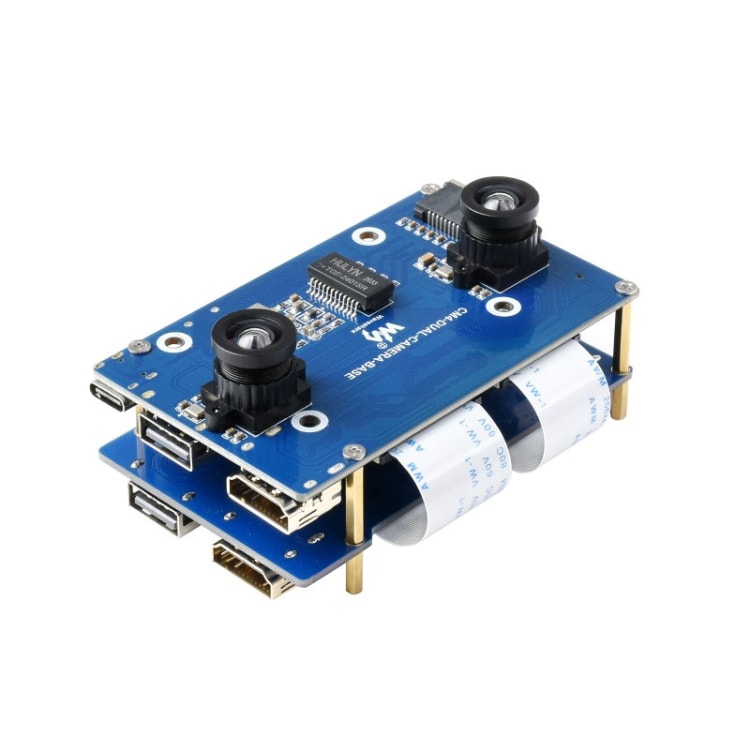

Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4

SKU: 06-0197774

C$103.03

C$128.80

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Camera Base Board
1. CM4 socket: Suitable for all variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45
3. USB: USB 2.0 x 1
4. FFC connector:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
5. Dual-lens camera
- Pixels: 8MP
- Sensor: IMX 219
- Resolution: 3280 x 2464 (per channel)
- CMOS size: 1/4 inch
- Aperture: F2.4
- Focal length: 2.6mm
- FOV: 83/73/50 degree (diagonal/horizontal/vertical)
- Distortion: Less than 1%
- Baseline length: 60mm
6. Video: HDMI-compatible x 1, supports 4K 30fps output
7. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
8. Power input: 5V/2.5A
9. Dimensions: 85.0 x 51.5mm
Interface Expander
1. USB: USB 2.0 x 3
2. FFC connector:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
3. Other connector:
- M.2 M KEY x 1, for connecting NVME SSD or communication module
- Raspberry Pi 40PIN GPIO header x 1
4. Video: HDMI-compatible x 1, support 4K 30fps output
5. Dimensions: 85.0 x 51.5mm
Package List
1. Dual camera base x1
2. Screws pack x1
3. Interface expander x1
4. FFC 2PCS x1

Packing List

Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4
Original set and packaging
