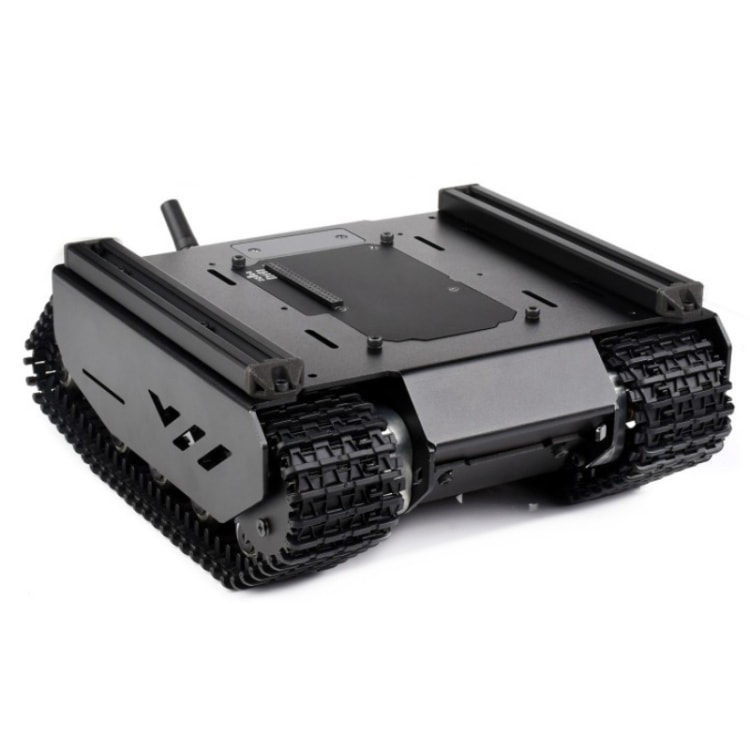

    Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer

    Be the first to review this product
    SKU: 06-0148328
    • Dimensions: 231x197x151mm
    • Suspension system: 42 (independent)
    • Chassis height: 26mm
    • Guide rail center distance: 170mm
    • Track width: 44mm
    • Running speed: 0.25~1m/s
    • Track horizontal ground length (no load): 115mm
    • Suspension material: 1.5mm (thickness) stainless steel
    C$274.97
    C$340.96
    Availability: In stock
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features
    • 1. Dimensions: 231x197x151mm
    • 2. Suspension system: 42 (independent)
    • 3. Chassis height: 26mm
    • 4. Guide rail center distance: 170mm
    • 5. Track width: 44mm
    • 6. Running speed: 0.25~1m/s
    • 7. Track horizontal ground length (no load): 115mm
    • 8. Suspension material: 1.5mm (thickness) stainless steel
    • 9. Track climbing ground length (with large load): 170 mm
    • 10. Body material: 2 mm (thickness) 5052 aluminum alloy
    • 11. Weight: 1.9 kg
    • 12. Vertical obstacle clearance capability: 40mm
    • 13. Driving Payload: 6.2kg
    • 14. Climbing ability: 36 degrees
    • 15. Battery holder: 18650 lithium battery x 3 (not included)
    • 16. Turning radius (min): 0 meters (rotating in place)
    • 17. Charging time: 1.5 hours
    • 18. Battery life: 1 hour (full power continuous output)
    • 19. Motor power: 5.2W2
    • 20. Remote control function: WIFI, AP/STA
    • 21. Motor encoder: basic pulse 11PPR
    • 22. Communication interface: UART/serial bus servo interface/IIC
    • 23. The crawler-type mobile robot chassis has super off-road crossing ability and anti-seismic performance, and all codes are open source for secondary development
    • 24. Support multiple host computers, can communicate with ESP32 slaves through the serial port
    • 25. Motors with encoders can get speed feedback for closed-loop speed control
    • 26. Built-in 3S UPS power supply module, supports 3 18650 lithium batteries (serial connection, not included), provides uninterrupted power supply for the robot, and supports charging and power output at the same time
    • 27. Built-in multifunctional robot driver board, based on ESP32, onboard WIFI and Bluetooth, used to drive serial bus servos, output PWM signals, expand TF card slots, etc.
    • 28. Multiple independent suspension systems are used to greatly reduce the impact of complex terrain and easily meet the needs of heavy loads, shock absorption, and off-road
    • 29. And it comes with 2x 1020 European standard profile guide rails, providing more possibilities for secondary development
    Packing List
    • Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer
    • Original set and packaging
