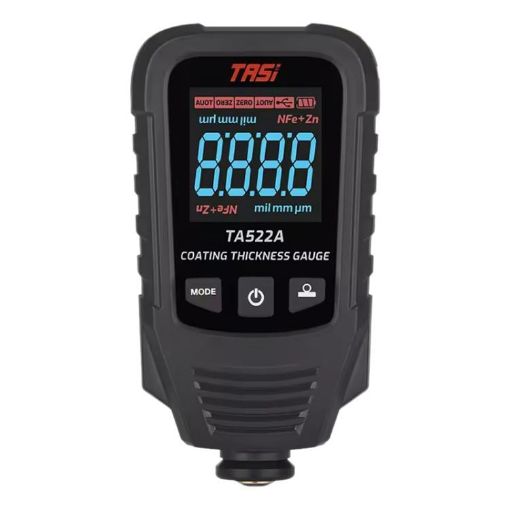

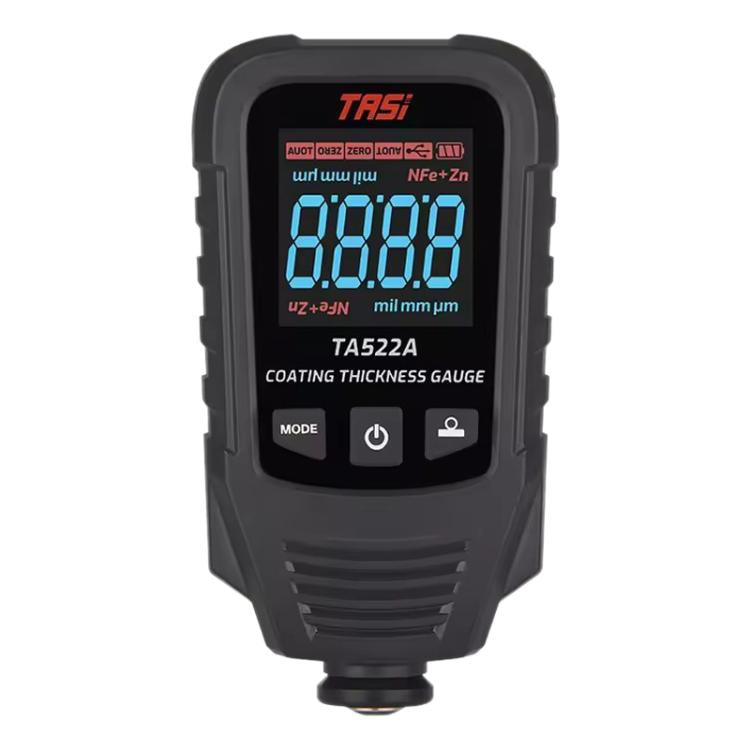

TASI TA522A Car Paint Film Meter Paint Surface Tester Coating Thickness Gauge (Black)

SKU: 06-0288421

Measuring principle: Fe: magnetic induction / NFe: eddy current effect
Measuring range: 0~2000um/0~2mm/0~78mil
Accuracy: +/- (3%+1um) / +/- (3%+0.001mm) / +/- (0.117%+0.039mil)
Resolution: Less than 100um (0.1um), 100um (1um); Greater than or equal to 2m (0.001mm); Less than 10mil (0.001mil); 10~78mil (0.01mil)
Calibration: zero point calibration
Unit: um, mm, mil
Iron powder putty range: 0~1000um
Iron galvanized range: 3~500um

C$135.16

C$163.54

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Measuring principle: Fe: magnetic induction / NFe: eddy current effect
2. Measuring range: 0~2000um/0~2mm/0~78mil
3. Accuracy: +/- (3%+1um) / +/- (3%+0.001mm) / +/- (0.117%+0.039mil)
4. Resolution: Less than 100um (0.1um), 100um (1um); Greater than or equal to 2m (0.001mm); Less than 10mil (0.001mil); 10~78mil (0.01mil)
5. Calibration: zero point calibration
6. Unit: um, mm, mil
7. Iron powder putty range: 0~1000um
8. Iron galvanized range: 3~500um
9. Minimum radius of curvature of substrate: convex surface 5mm; concave surface 25mm
10. Minimum measurement area: 15mm diameter
11. Minimum substrate thickness: Fe: 0.30mm; NFe: 0.05mm
12. Maximum measurement speed: 2 times/second
13. Display: four-digit display, maximum 8888, 180-degree rotation (automatic)
14. Operating environment: -10~50 degrees Celsius, maximum 90% relative humidity, indoor altitude less than 2000m
15. Storage environment: -20~60 degrees Celsius, maximum 70% relative humidity (remove batteries)
16. Product size: 104 x 57 x 26mm
17. Weight: about 70g (without batteries)
18. Power supply: 2 x 1.5V AAA
Features:
1. Ruby probe is used to automatically identify the substrate. The probe mode can select automatic mode, iron-based mode and non-iron-based mode
2. High-definition color display, 180-degree rotation, with background light
3. Automatically shuts down after 50 seconds without any operation
4. Small and portable, does not take up storage space, easy to carry

Packing List

TASI TA522A Car Paint Film Meter Paint Surface Tester Coating Thickness Gauge (Black)
Original set and packaging
