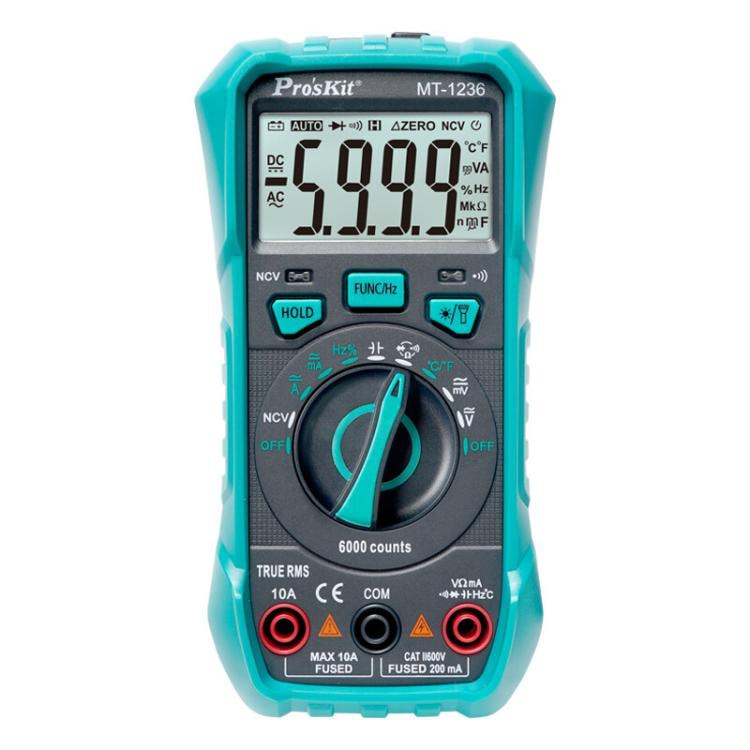

ProsKit MT-1236-C 3-5/6 True-RMS Digital Multimeter For ACA, ACV, DCA, DCV, Frequency, Cycle Duty, Diode Test (Green)

Be the first to review this product

SKU: 06-0268012

This multi-function multimeter has high accuracy and performance and can measure DC/AC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle, among other things. It also has functions such as NCV detection (non-contact voltage), temperature test, LED light, and more!
Suitable for ACA, ACV, DCA, DCV, frequency, cycle duty cycle, diode test, etc.
Accurate value, with ACV ACA true RMS measurement
Overload protection to ensure user safety
Backlight design, clear reading without effort
Can be tilted/hung, convenient for measurement and reading, test lead storage slot design
Display: 3 5/6, maximum display 5999
Manual/automatic: automatic

C$37.45

C$43.07

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

1. This multi-function multimeter has high accuracy and performance and can measure DC/AC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle, among other things. It also has functions such as NCV detection (non-contact voltage), temperature test, LED light, and more!
2. Suitable for ACA, ACV, DCA, DCV, frequency, cycle duty cycle, diode test, etc.
3. Accurate value, with ACV ACA true RMS measurement
4. Overload protection to ensure user safety
5. Backlight design, clear reading without effort
6. Can be tilted/hung, convenient for measurement and reading, test lead storage slot design
Parameters:
1. Display: 3 5/6, maximum display 5999
2. Manual/automatic: automatic
3. Safety level: CAT II 600V
4. DC voltage: 600mV/6V/60V/600V accuracy +/-(0.5%+5d)
4. AC voltage: 600mV/6V/60V/600V accuracy +/-(1%+4d) TRUE RMS
5. DC current: 60mA/ 600mA accuracy +/-(1.2%+5d) 10A accuracy +/-(3.0%+5d)
6. AC current: 60mA/600mA accuracy +/-(1.5%+5d) 10A accuracy +/-(3.0%+5d) TRUE RMS
7. Resistance: 600 ohms/6k / 60k / 600k / 6M / 60M accuracy +/-(0.8%+5d)
8. Frequency: 9.999Hz/ 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz accuracy +/-(1.5% +5d)
9. ??Duty cycle: 1%-99% accuracy (2.5%+5d)
10. Capacitance: 60nF / 600nF /6uF / 60uF / 600uF /6mF Accuracy +/-(4% +5d); 100mF +/-(4% +10d)
11. Temperature: -20~1000 degrees Celsius / -4-1832 degrees Fahrenheit, Accuracy +/-(1% +3d)
12. Continuity buzzer: Less than or equal to 30 ohms, buzzer sounds
13. Diode measurement: Yes
14. Auxiliary lighting LED: Yes
15. Low voltage display: Yes
16. Data retention: Yes
17. Buzzer warning: Yes
18. Backlight: Yes
19. Non-contact voltage test: Yes (AC30V-600V 50/60Hz)
20. Battery: 1.5V AAAx 3 (not included)
21. Dimensions: 148 x 79 x 48mm

Packing List

ProsKit MT-1236-C 3-5/6 True-RMS Digital Multimeter For ACA, ACV, DCA, DCV, Frequency, Cycle Duty, Diode Test (Green)
Original set and packaging
