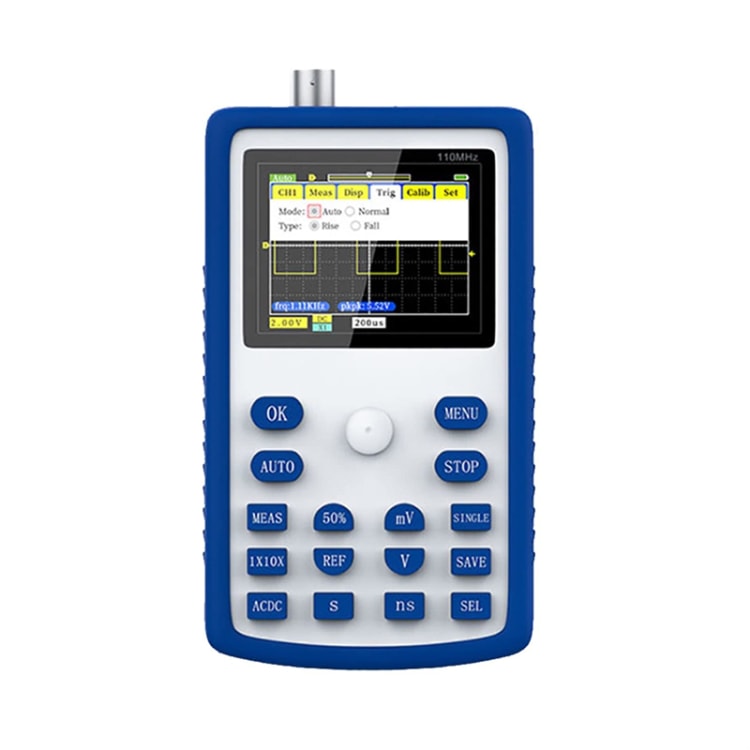

FNIRSI 1C15 Handheld Mini Portable Digital Oscilloscope With EU Plug

Be the first to review this product

SKU: 06-0224524

Easy to use, with charging function, longer service life
The body is made of high-quality silicone cover, non-slip and drop-proof
High-resolution LCD screen design, convenient for users to operate at night and daytime
1KHz/3.3V square wave test signal, just connect the probe to the calibration end to see the waveform on the screen
Can be hidden bracket design, easy to operate and observe the data
One-key automatic adjustment, press the Auto button, the oscilloscope will automatically measure the amplitude and frequency of the waveform, and automatically adjust the horizontal and vertical gears so that the waveform is displayed in the middle of the screen
Reasonable design scheme makes the equipment performance more stable
Compact and exquisite, easy to carry around

C$100.67

C$118.78

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

1. Easy to use, with charging function, longer service life
2. The body is made of high-quality silicone cover, non-slip and drop-proof
3. High-resolution LCD screen design, convenient for users to operate at night and daytime
4. 1KHz/3.3V square wave test signal, just connect the probe to the calibration end to see the waveform on the screen
5. Can be hidden bracket design, easy to operate and observe the data
6. One-key automatic adjustment, press the Auto button, the oscilloscope will automatically measure the amplitude and frequency of the waveform, and automatically adjust the horizontal and vertical gears so that the waveform is displayed in the middle of the screen
7. Reasonable design scheme makes the equipment performance more stable
8. Compact and exquisite, easy to carry around
Parameters:
1. Channel coupling: AC / DC
2. Time base range: 5ns-10s
3. Single trigger: support
4. Number of channels: 1
5. Vertical sensitivity: 20mV/div-100V/div
6. Operation mode: key + rocker
7. Screen size: 2.4 inches
8. Waveform measurement: 14 kinds
9. Screen resolution: 320 x 240
10. Measurement accuracy: +/-2 percent
11. Trigger type: rising edge/falling edge
12. Waveform analysis: support mopping/expanding
13. Analog bandwidth: 110M
14. Display Mode: YT/scrolling
15. Sampling rate: 500M
16. Afterglow time: None/1s
17. Rise time: less than 3ns
18. Storage depth: 12kpts
19. Charging mode: 5V/800mA
20. Battery capacity: 3000mAh
21. Voltage measurement range: x1 gear: +/-40V; x10 gear: +/-400V
22. Size: 130 x 76 x 27mm
Accessories: high voltage probe / alligator clip probe / data cable / EU plug charger / instruction manual

Packing List

FNIRSI 1C15 Handheld Mini Portable Digital Oscilloscope With EU Plug
