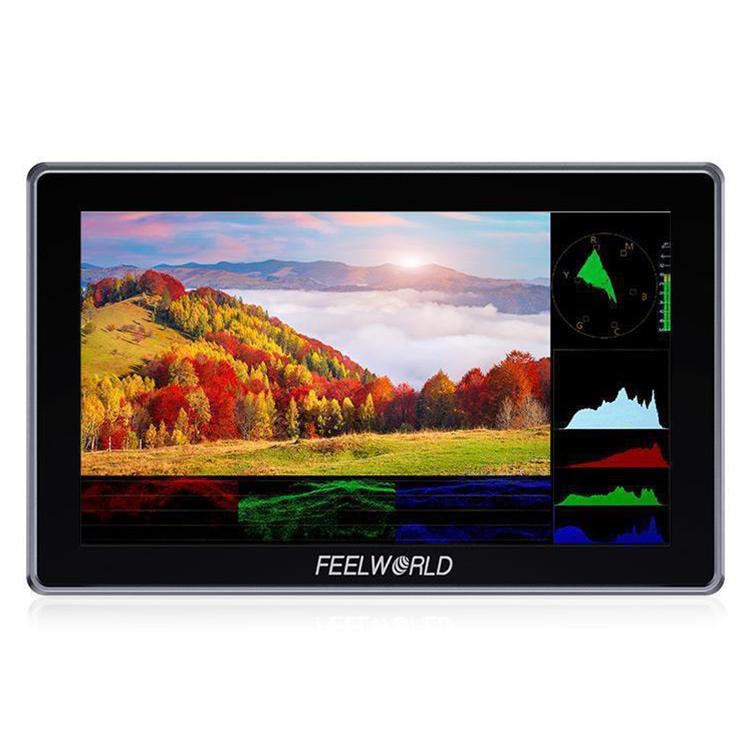

    FEELWORLD H5 5.5 inch 12G SDI HDMI 2.0 Camera Field Monitor High Brightness 1200nit Touchscreen Monitor (Black)

    Be the first to review this product
    SKU: 06-0273011
    • Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
    • Waveform (RGB, YUV, Y)
    • HDR
    • Vector
    • Histogram (RGB1,RGB2,Y)
    • Embedded Audio
    • Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
    • False Colors (Normal, ARRI)
    C$681.81
    C$784.08
    Availability: In stock
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features
    • Features
    • 1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
    • 2. Waveform (RGB, YUV, Y)
    • 3. HDR
    • 4. Vector
    • 5. Histogram (RGB1,RGB2,Y)
    • 6. Embedded Audio
    • 7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
    • 8. False Colors (Normal, ARRI)
    • 9. Over Exposure (10RE~100IRE adjustable)
    • 10. Check Field (Red, Green, Blue, Mono)
    • 11. Scan Mode (Under Scan, Over Scan)
    • 12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
    • 13. Image Flip (H Flip, V Flip, H_V Flip )
    • 14. Image Freeze
    • 15. Center Marker
    • 16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
    • 17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
    • 18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
    • 19. Marker Color (Red, Green, Blue, Black, White, Gray)
    • 20. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from 2~9)
    • 21. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100~200 percent)
    • 22. Pixel to Pixel
    • 23. Color Gamut (DCI-P3, REC709)
    • 24. Display Range(Auto, Limit, Full)
    • 25. Color Temp. (5600K, 6500K, 9300K, User.Under the "user", the red, green, and blue values of the image can be adjusted 0~255)
    • Specifications
    • Display Spec.:
    • 1. Model: H5
    • 2. Screen Size: 5.5 inch IPS
    • 3. Resolution: 1920x1080 pixels
    • 4. Pixel Pitch: 0.063(H) x 0.063 (V) (mm)
    • 5. Color Depth: 10bit (8+2bit)
    • 6. Aspect Ratio: 16:9
    • 7. Brightness: 1200cd/m2
    • 8. Contrast Ratio: 1000:1
    • 9. Backlight: LED
    • 10. Viewing Angle: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D)
    • Input:
    • 1. 1 x SDI: 12G-SDI
    • 2. 1 x HDMI: HDMI 2.0
    • 3. 1 x USB-C: 5V Type-C: 1. LUT file or firmware update port; 2. power input (please use 5V/2A or more than 2A Type-C power supply)
    • 4. 1 x DC: DC IN 12V (suitbale for Barrel DC 5.5 x 21mm power cable plug)
    • Output:
    • 1. 1 X SDI: 12G-SDI
    • 2. 1 X HDMI: HDMI2.0
    • Audio:
    • Audio: 3.5mm Stereo Headphone
    • 12G-SDI Input and Output Support Format:
    • 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
    • 2. 1080i (60/59.94/50)
    • 3. 1080p (60/59.94/50/30/29.97/25/24/23.98)
    • 4. 2048 x 1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
    • 5. 4K 3840 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
    • 6. 4K 4096 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
    • HDMI Input and Output Support Format
    • 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
    • 2. 1080i (60/59.94/50)
    • 3. 1080p (60/59.94/50)
    • 4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
    • 5. 4K 4096 x 2160p(60/50/30/29.97/25/24/23.98)
    • General:
    • 1. Input Voltage: DC7-24V
    • 2. Power Consumption: Less than or equal to 12W
    • 3. Working Temperature: -20 degree C~70 degree C
    • 4. Storage Temperature: -30 degree C~80 degree C
    • 5. Install Way: 1/4 inch -20 Thread (Left,Right,Bottom)
    • 6. Unit Size: 145.25x90.3x30.85(mm)
    • 7. Unit Weight: 306g
    • Package List
    • 1. Monitor x 1
    • 2. Micro HDMI Cable x 1
    • 3. HDMI Cable x 1
    • 4. Mini Hot Shoe Mount x 1
    • 5. USB-A to USB-C Adapter x 1
    • 6. Cable Management Tie x 1
    • 7. Manual x 1
    Packing List
    • FEELWORLD H5 5.5 inch 12G SDI HDMI 2.0 Camera Field Monitor High Brightness 1200nit Touchscreen Monitor (Black)
    • Original set and packaging
