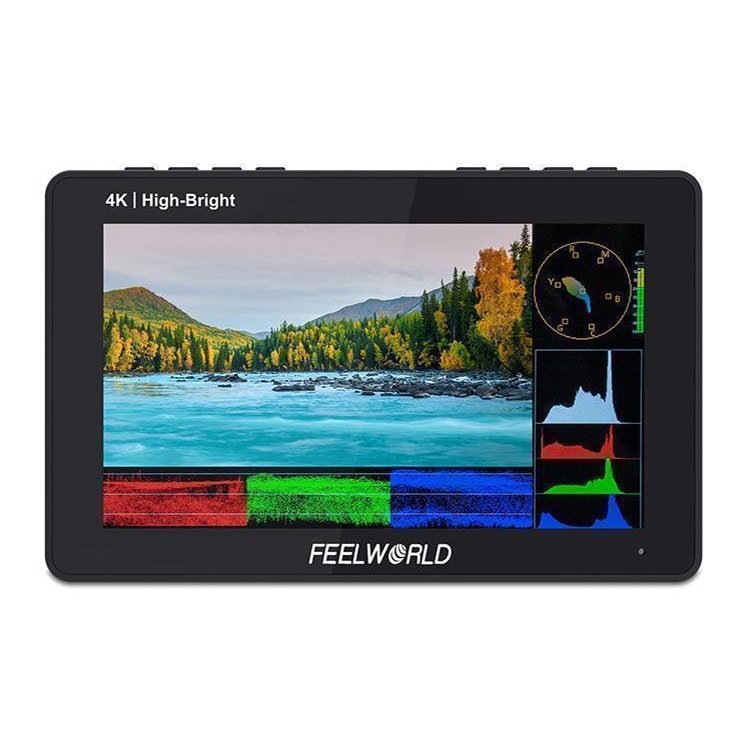

FEELWORLD F5 ProX 5.5 inch 1600nit High Bright Touch Screen DSLR Camera Field Monitor 4K HDMI F970 Install and Power Kit (Black)

Be the first to review this product

SKU: 06-0279445

Support 3D LUT Log to Rec.709, user 3D LUT Upload
All Waves
Waveform (RGB, Y, YUV)
Histogram(RGB1, Y, RGB2)
Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
False Colors
Zebra Exposure (10-100IRE adjustable)
Check Field (Red, Green, Blue, Mono)

C$272.71

C$332.71

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

Features:
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload
2. All Waves
3. Waveform (RGB, Y, YUV)
4. Histogram(RGB1, Y, RGB2)
5. Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
6. False Colors
7. Zebra Exposure (10-100IRE adjustable)
8. Check Field (Red, Green, Blue, Mono)
9. Scan Mode (Under Scan, Over Scan)
10. Anamorphic Mode (1.33x,1.6x, 2.0x, 2.0x mag)
11. Image Flip (H, V, H/V)
12. Image Freeze
13. Center Marker
14. Safe Frames (80%,85%,90%,93%,96%, 2.35:1)
15. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
16. Color Temperature Adjustment
17. Nine Grid (Zoom one of the images to realize the full screen)
18. Zoom (2X, 4X, 9X, 16X)
19. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
20. Pixel to Pixel
Specifications:
Display Spec.
1. Model: F5 PROX
2. Screen Size: 5.5 inch IPS Touch Screen
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069 (H) x 0.069 (V) mm
5. Aspect Ratio: 16:9
6. Brightness: 1600cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D)
Input
1. 1 x HDMI: HDMI
2. 1 x Type-C: 5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply)
Output
1. 1 x HDMI: HDMI
2. 1 x DC Output: DC Output
Audio
1. Audio: Stereo Headphone
HDMI Input/ Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
General
1. Input Voltage: DC 724V
2. Power Consumption: Less than or equal to 9W
3. Power Connector: DC
4. Working Temperature: -20 degree C~50 degree C
5. Storage Temperature: -30 degree C~60 degree C
6. Install Way: 1/4 inch thread points
7. Unit Size: 148Lx93Hx20D (mm)
8. Unit Weight: 245g
Package List:
1. Monitor x 1
2. Micro HDMI Cable x 1
3. Tilt Arm x 1
4. Sunshade x 1
5. Type-C to USB x 1
6. Disassemble Wrench x 1
7. Manual x 1

Packing List

FEELWORLD F5 ProX 5.5 inch 1600nit High Bright Touch Screen DSLR Camera Field Monitor 4K HDMI F970 Install and Power Kit (Black)
Original set and packaging
