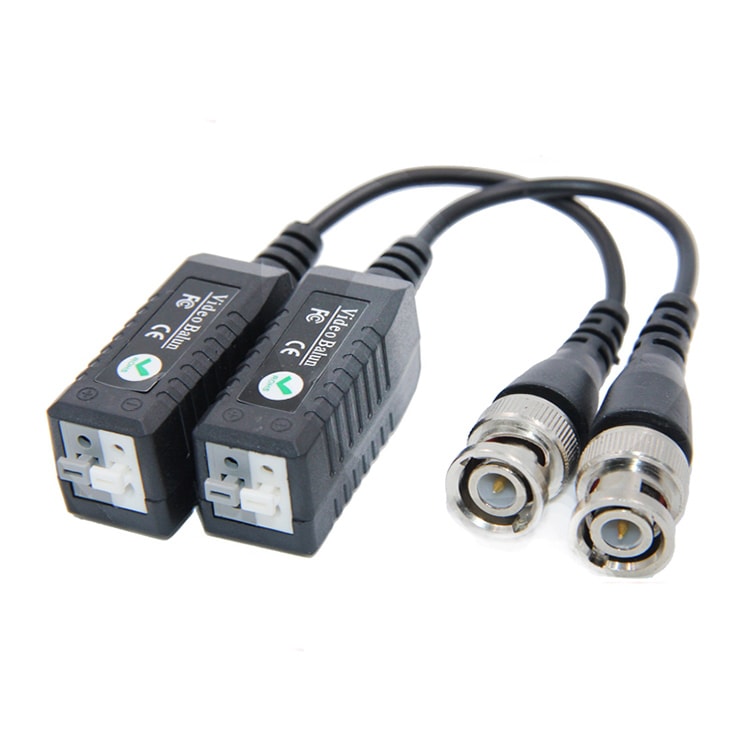

CCTV Via Twisted Pairs Passive UTP Video Transceiver (Black)

SKU: 06-0153986

Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
Up to 1500m with any active UTP Video receiver
"Press-Fit" terminal block
NTSC, PAL, and SECAM video formats
No power required
60dB crosstalk and noise immunity
Compact size and easy installation

C$9.87

C$11.44

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features:
1. Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any active UTP Video receiver
3. "Press-Fit" terminal block
4. NTSC, PAL, and SECAM video formats
5. No power required
6. 60dB crosstalk and noise immunity
7. Compact size and easy installation
Technical Specifications:
1. Frequency response: DC to 8MHZ
2. Attenuation: 0.5dB typ
3. Impedance: BNC:75 ohms, CMRR: 60dB; Terminal: 100 ohms
4. Working Temperature: -10 degree C to + 70 degree C
5. Storage Temperature: -30 degree C to + 70 degree C
6. Humidity: 0 to 95%
7. Dimension: 39mm x 16mm x 19mm

Packing List
