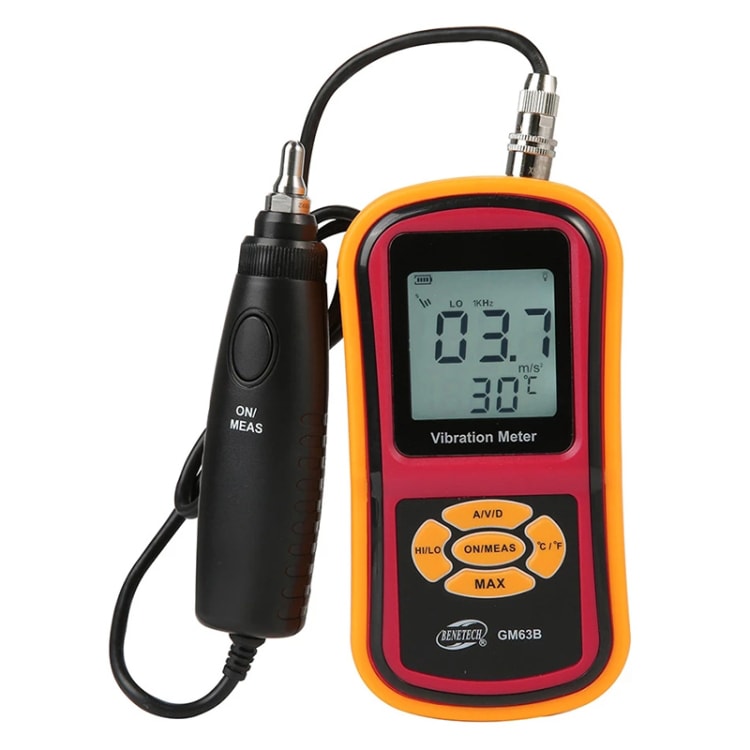

BENETECH GM63B Digital Vibration Meter

SKU: 06-0224690

This product adopts piezoelectric effect of artificial polarized ceramic for design.
It is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery.
The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. field.
LCD displays measurement result and conditions directly
Measure acceleration, velocity and displacement
Selective vibration characteristic
Use hi-sense of vibration sensor, measuring accurately
Equipped two probes (S and L) to adapt the different measurement requirement

C$158.59

C$196.66

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

About the product
1. This product adopts piezoelectric effect of artificial polarized ceramic for design.
2. It is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery.
3. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. field.
Features
1. LCD displays measurement result and conditions directly
2. Measure acceleration, velocity and displacement
3. Selective vibration characteristic
4. Use hi-sense of vibration sensor, measuring accurately
5. Equipped two probes (S and L) to adapt the different measurement requirement
6. Provide a magnetic probe to fit the condition uneasy hold on by hand
7. Low battery indication
8. Auto turn off function
9. LCD back light function
10. Maximum value hold function
11. Temperature unit Celsius Degree / Fahrenheit Degree selection

Specifications

General
Operating Temperature	0 ~ 40 Degree Celsius
Temperature Range	-10-80 Celsius Degree
Operating Humidity	30-90%RH
Accuracy	+-5%+-2digits
Display Update Cycle	1 second
LCD Display	3 1/2 Digits Display
Standby Current	<=15uA
Operating Current	<=25mA
Power Supply	9V 6LR6I battery (included)
Battery Life	20H Continuous Use
Measurement Range of Acceleration	0.1~199.9 m/s2 Peak
Measurement Range of Velocity	0.1~199.9mm/s rms
Measurement Range of Displacement	0.001~1.999mm p-p
Measurement Frequency Range of Acceleration	10Hz~1KHz(LO); 1KHz~15KHz(HI)
Measurement Frequency Range of Velocity	10Hz~1KHz(LO)
Measurement Frequency Range of Displacement	10Hz~1KHz(LO)
Size	145mm x 72mm x 35mm
Weight	229g

Packing List
