A7951 RV/Yacht Fuel Level Sensor with 52mm Oil Level Gauge

SKU: 06-0198253

Made of stainless steel, long service life, anti-vibration, explosion-proof.
Simple and sturdy structure, good corrosion resistance, reed switch, stable output signal.
The sensor is a standard SAE 5-hole pattern, easy to install and connect.
Function: used to detect the height of the tank liquid level and display the remaining fuel
Scope of application: suitable for trucks, generators/generator sets, buses and ships. Widely used in fuel, water, kerosene and chemical storage tanks
Material: Material: instrument panel 316 stainless steel, sensor 304 stainless steel
Installation diameter: 52mm
Working voltage: 9-32V DC

C$45.42

C$54.50

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Made of stainless steel, long service life, anti-vibration, explosion-proof.
2. Simple and sturdy structure, good corrosion resistance, reed switch, stable output signal.
3. The sensor is a standard SAE 5-hole pattern, easy to install and connect.
4. Function: used to detect the height of the tank liquid level and display the remaining fuel
5. Scope of application: suitable for trucks, generators/generator sets, buses and ships. Widely used in fuel, water, kerosene and chemical storage tanks
6. Material: Material: instrument panel 316 stainless steel, sensor 304 stainless steel
7. Installation diameter: 52mm
8. Working voltage: 9-32V DC
9. Backlight color: red
10. Working temperature: -40-85 degrees Celsius
11. Received signal: 0-190 ohms
12. Sensor specifications: 8 inches

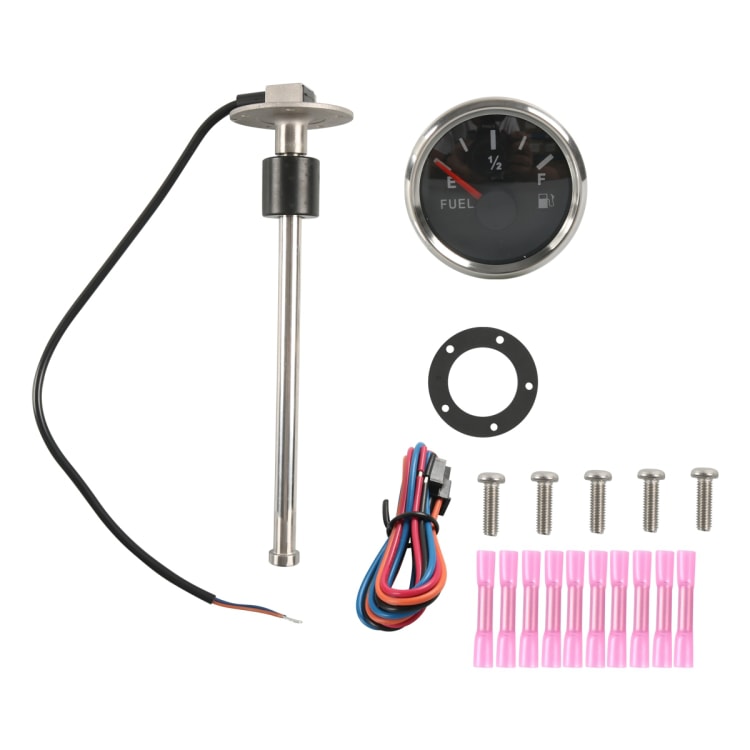

13. Packing list:
Oil level sensor x 1
52mm oil level gauge x 1
Installation kit x 1

Packing List
