30W QRP 5MHz-55MHz Shortwave FM Radio Transmitting Antenna

SKU: 06-0199111

Adjustable frequency: 5MHz-55MHz for sending and receiving
VSWR less than 1.5 at 7MHz/10MHz/14MHz/21MHz
Power: within 30W
FM 76mhz-108mhz reception
Can receive UHF VHF frequency, with transmission auxiliary function
Use the knob to adjust the frequency, and the band switch to select the short-wave high and low bands
Stretched size 140cm/55.1in (including tuner)
Material: stainless steel

C$63.36

C$79.20

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Adjustable frequency: 5MHz-55MHz for sending and receiving
2. VSWR less than 1.5 at 7MHz/10MHz/14MHz/21MHz
3. Power: within 30W
4. FM 76mhz-108mhz reception
5. Can receive UHF VHF frequency, with transmission auxiliary function
6. Use the knob to adjust the frequency, and the band switch to select the short-wave high and low bands
7. Stretched size 140cm/55.1in (including tuner)
8. Material: stainless steel
9. Top with M4 male connector, output M male or BNC male connector
10. Unstretched size: 30cm (including tuner)
11. Tuner size: 10x3x3 cm
Instructions:
1. The upper knob is the band switch of each frequency, and the lower knob is the fine-tuning of the frequency vibration point. The upper outer ring 11 and the inner ring 50 represent the general position of 11-50MHz. 8 and FM represent the 8Mhz and FM bands. This can be used position, and so on. Then select the knob below to fine-tune to find the standing wave. It is recommended to link the genius to check the vibration point
2. Extended use method: remove the rod antenna, connect a 20-meter long line, set up the long line high or on the roof, the tuning method is the same as above, and the emission efficiency will increase several times. This method can replace the rod antenna

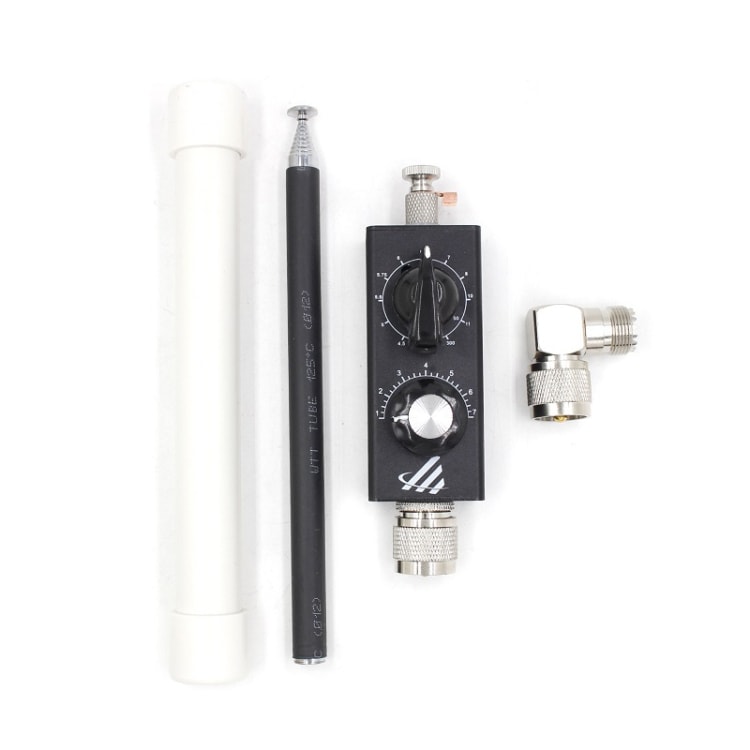

Package Included:
- Tuner x 1
- Antenna x 1
- Adapter x 1
