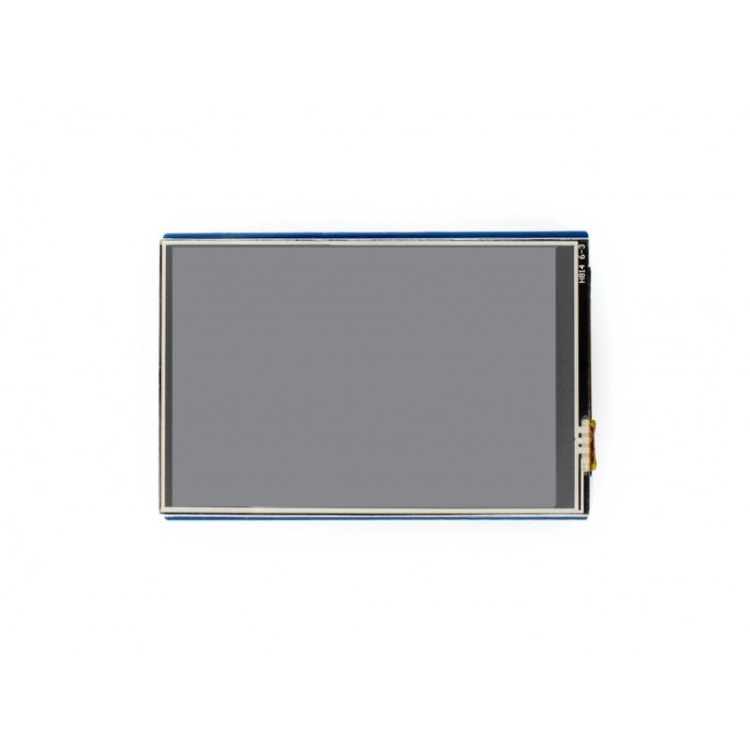

3.5 inch Touch LCD Shield for Arduino

SKU: 06-0138309

Features
1. Resistive touch screen TFT LCD, 3.5inch, 480x320 resolution
Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO
Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
PWM backlight control, allows to adjust the backlight to a comfortable level
Micro SD slot, provides an easy way to store photos for displaying
Controlled via SPI, only a few Arduino pins are used
Comes with STM32 and Arduino examples, convenient for porting

C$39.83

C$45.80

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
1. Resistive touch screen TFT LCD, 3.5inch, 480x320 resolution
2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO
3. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
4. PWM backlight control, allows to adjust the backlight to a comfortable level
5. Micro SD slot, provides an easy way to store photos for displaying
6. Controlled via SPI, only a few Arduino pins are used
7. Comes with STM32 and Arduino examples, convenient for porting
Key Parameters
1. LCD Type: TFT
2. LCD Interface: SPI
3. LCD Controller: ILI9486
4. Touch Screen Type: Resistive
5. Touch Screen Controller: XPT2046
6. Colors: RGB, 65K colors
7. Resolution: 480x320 (Pixel)
8. Aspect Ratio: 8:5
9. I/O Voltage: 3.3V/5V
Wiki : www.waveshare.com/wiki/3.5inch_TFT_Touch_Shield
