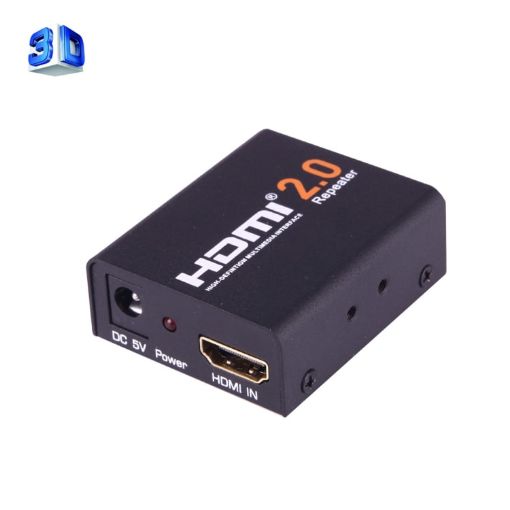

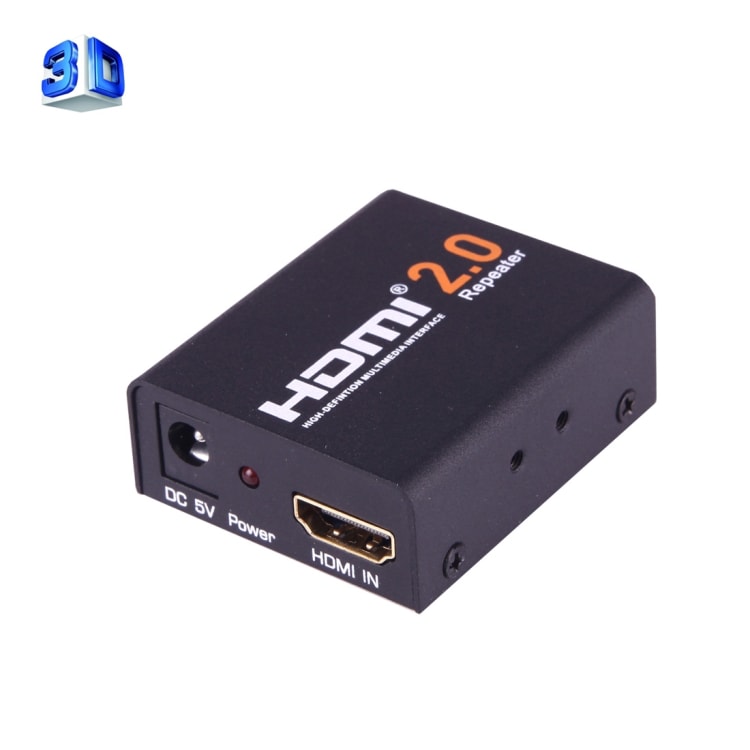

2160P Full HD HDMI 2.0 Amplifier Repeater, Support 4K x 2K, 3D

SKU: 06-0148657

Compliant to HDMI 2.0 and HDMI 1. x specification.
Serial data rate up to 6.0 Gbps, support for ultra-high resolution 4K / 2K @ 60 Hz format.
Support HDCP 2.2.
Support 3D transmission.
When input resolution is 4K/60Hz RGB 4:4:4; both input and output transmission distance are up to 15 meters using HDMI 2.0 AWG24 cable.
When input resolution is 4K/30Hz RGB 4:4:4 or 4K/60Hz RGB 4:2:0, both input and output transmission distance are up to 20 meters using HDMI 2.0 AWG24 cable.
When input resolution is 1080P/60Hz, both input and output transmission distance are up to 360 meters using HDMI 2.0 AWG24 cable.
Audio and video lossless transmission without any delay.

C$23.39

C$28.06

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Compliant to HDMI 2.0 and HDMI 1. x specification.
2. Serial data rate up to 6.0 Gbps, support for ultra-high resolution 4K / 2K @ 60 Hz format.
3. Support HDCP 2.2.
4. Support 3D transmission.
5. When input resolution is 4K/60Hz RGB 4:4:4; both input and output transmission distance are up to 15 meters using HDMI 2.0 AWG24 cable.
6. When input resolution is 4K/30Hz RGB 4:4:4 or 4K/60Hz RGB 4:2:0, both input and output transmission distance are up to 20 meters using HDMI 2.0 AWG24 cable.
7. When input resolution is 1080P/60Hz, both input and output transmission distance are up to 360 meters using HDMI 2.0 AWG24 cable.
8. Audio and video lossless transmission without any delay.
9. Simple installation.

Specifications

General
Material	Metal
Input Port	1*HDMI
Output Port	1*HDMI
Interface	DC IN, 1 x HDMI Output, 1 x HDMI IN
HDMI Resolution	4K@60Hz
HDMI Version	V2.0
Power Supply	DC 5.0V / 1.0A
Video Bandwidth	340MHz
Transmission Rate	1.8Gbps
HDMI Bandwidth	300MHz
Working Current	300mAh
Operating Temperature	-10 to 55 Degree Celsius
Storage Temperature	-20 ~ 60 Degree Celsius
Operating Humidity	10 ~ 90 Percent RH (Non-condensing)
Storage Humidity	5 ~ 95 Percent RH (Non-condensing)
ESD Protection Human Body Model	+-8kV (air-gap discharge) +-4kV (contact discharge)
Cable Length	80cm
Size	5.34.41.9cm
Weight	60g
Package Include
Package Contents	1 x USB Cable 1 x User Manual 1 x Repeater 1 x Mounting Accessories Set
